SRS斯坦福SR510 830 810 844 850 860 865 2124 530鎖相放大器

本公司長期收購及出售:音頻儀器,視頻儀器,高頻儀器(如網絡分析儀,頻譜分析儀高頻信號源,無線電綜合測試儀等高頻儀器,并高頻承接儀器維修)!

回收工廠閑置/倒閉電子儀器，個人處理儀器，歡迎來電??！

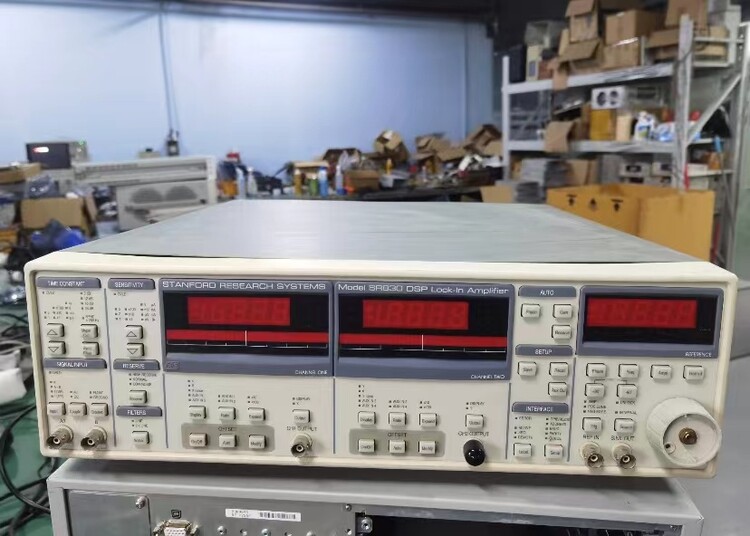

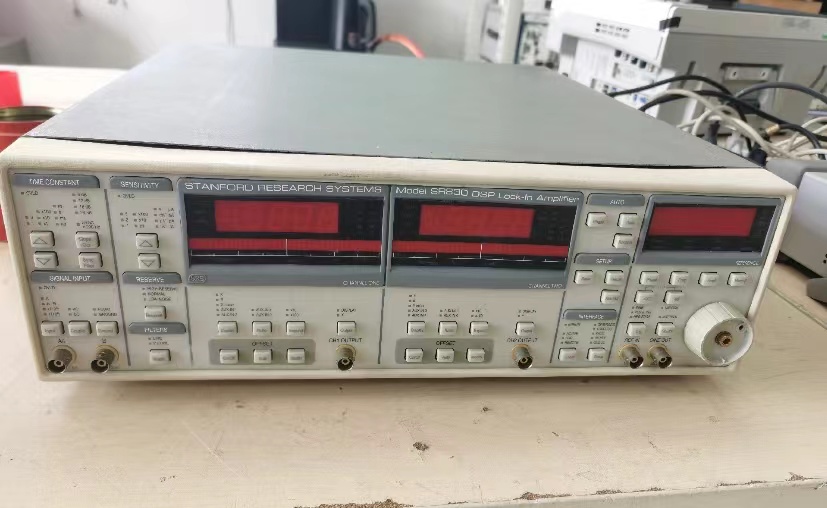

SR830和SR810數字鎖相放大器具有，格等優勢。SR830數字鎖相放大器既顯示幅值，有顯示相位值。SR810鎖相放大器只顯示幅值。使用數字處理技術（DSP）完全取代了傳統的由解調器，濾波器和放大器組成的鎖相放大器。

主要性能：
頻率范圍1mHz 到102.4kHz
＞100dB 的動態保留
穩定性為5ppm/℃
0.01 度的相位分辨率
時間常數為10μs 到30ks（*大24dB倍頻程衰減速率）
具有自動獲取，自動定相，自動存儲
自動補償功能
合成參考光源
GPIB 和RS-232 兩種接口

技術參數:

信號通道
電壓輸入             Single-ended or differential
分辨率                 2 nV to 1 V
電流輸入             106 or 108 V/A
輸入阻抗
        電壓             10 MΩ + 25 pF, AC or DC coupled
        電流             1 kΩ to virtual ground
增益精度             ±1 % (±0.2 % typ.)
噪聲 (typ.)           6 nV/√Hz at 1 kHz
                              0.13 pA/√Hz at 1 kHz (106 V/A)
                              0.013 pA/√Hz at 100 Hz (108 V/A)

線性濾波             50/60 Hz and 100/120 Hz (Q = 4 )
CMRR                 100 dB to 10 kHz, decreasing by 6 dB/oct above 10 kHz
動態范圍              >100 dB (without prefilters)
穩定性                  <5 ppm/°C

參考通道
頻率范圍              0.001 Hz to 102.4 kHz
參考輸入              TTL or sine (400 mVpp min.)
輸入阻抗              1 MΩ, 25 pF
相位分辨率          0.01° front panel, 0.008° through computer interface
相位誤差      <1°
相對相位誤差      <0.001°
正交性                  90° ± 0.001°
相位噪聲
               Internal ref. Synthesized, <0.0001° rms at 1 kHz
               External ref. 0.005° rms at 1 kHz (100 ms time constant, 12 dB/oct)
相位漂移             <0.01°/°C below 10 kHz,
                             <0.1°/°C above 10 kHz
諧波檢測             2F, 3F, ... nF to 102 kHz (n < 19,999)
收集時間             (2 cycles + 5 ms) or 40 ms,whichever is larger

解調器
穩定性                 Digital outputs and display: no drift Analog outputs: <5 ppm/°C for all dynamic
                             reserve settings
諧波抑制器         ?90 dB
時間常數             10 μs to 30 ks (6, 12, 18, 24 dB/oct rolloff). Synchronous filters available below      200 Hz.

內部振蕩器
范圍                    1 mHz to 102 kHz
頻率精度            25 ppm + 30 μHz
頻率分辨率        4? digits or 0.1 mHz, whichever is greater
失真                    ?80 dBc (f <10 kHz), ?70 dBc(f >10 kHz) @ 1 Vrms amplitude
振幅                    0.004 to 5 Vrms into 10 kΩ (2 mV resolution), 50 Ω output impedance, 50 mA maximum
                            current into 50 Ω Amplitude accuracy 1 % Amplitude stability 50 ppm/°C Outputs Sine,
                            TTL (When using an external reference, both outputs are phase locked to the external
                            reference.)

顯示
通道1                   4?-digit LED display with 40-segment LED bar graph. X, R, X-noise, Aux 1 or Aux 2. The
                              display can also be any of these quantities divided by Aux 1 or Aux 2.
通道2                   (SR830) 4?-digit LED display with 40-segment LED bar graph. Y, θ, Y-noise, Aux 3 or
                             Aux 4. The display can also be any of these quantities divided by Aux 3 or Aux 4.
補償                      X, Y, R can be offset up to ±105 % of full scale.
放大倍率              X, Y, R can be expanded by 10× or 100×.
參考                      4?-digit LED display

輸入和輸出
CH1輸出              X, R, X-noise, Aux 1 or Aux 2,(±10 V), updated at 512 Hz
CH2輸出              (SR830) Y, θ, Y-noise, Aux 3 or Aux 4,(±10 V), updated at 512 Hz
X, Y輸出                In-phase and quadrature components (rear panel) (±10 V), updated at 256 kHz.
Aux. A/D inputs              4 BNC inputs, 16-bit, ±10 V,1 mV resolution, sampled at 512 Hz
Aux. D/A outputs            4 BNC outputs, 16-bit, ±10 V, 1 mV resolution
正弦                         Internal oscillator analog output
TTL輸出                  Internal oscillator TTL output
數據緩沖器             The SR810 has an 8k point buffer.
                                 The SR830 has two 16k point buffers. Data is recorded at rates to 512 Hz and read
                                  through the computer interfaces.
觸發輸入 (TTL)      Trigger synchronizes data recording
遠程放大器              Provides power to the optional SR550, R552 and SR554 preamps

規格
連接口                       IEEE-488.2 and RS-232 interfaces standard. All instrument functions can be
                                   controlled and read through IEEE-488.2 or RS-232 interfaces.
